ecedata

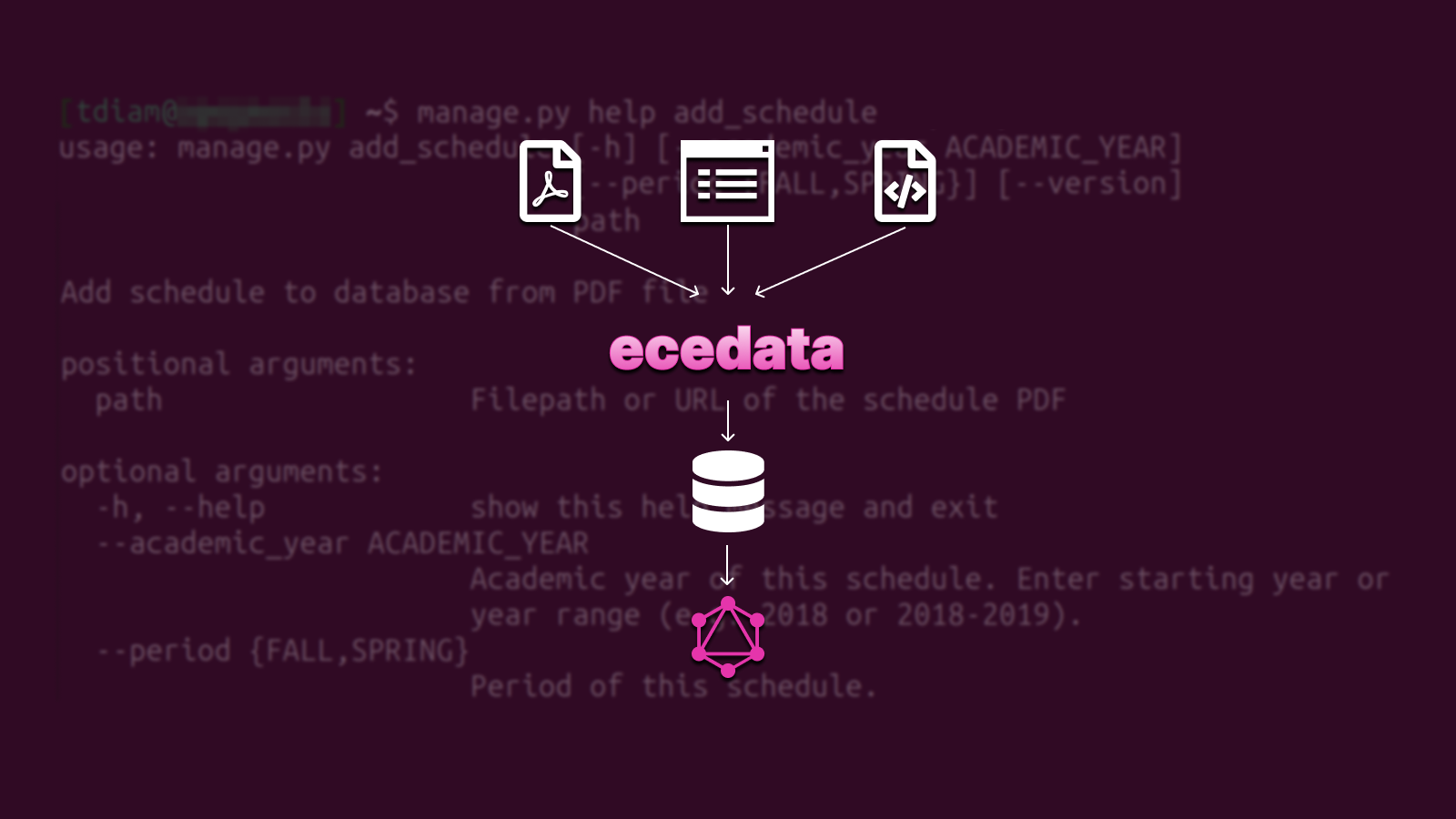

Python project that scrapes data from the website and documents of my university, like course schedules, exams, and staff, and exposes them as a GraphQL API.

I built this project as a developer in shmmy, a student community in the School of Electrical and Computer Engineering of NTUA. The exposed data API serves as foundation for other shmmy projects, like studyplanner and Live Display, as well as third-party apps.

Features of ecedata include:

• ETL (extract, transform and load) pipelines that scrape the department website to derive course information, lists of teaching and lab staff, and staff-to-course assignments.
• Parsing the department's course schedule PDFs and loading the extracted data into a database.
• Parsing and storing data from the exam schedule PDFs.
• Scraping the grades platform to track result dates and extract grade statistics.
• A fuzzy matching algorithm for Named Entity Recognition of courses in unstructured text, which is exposed as a query endpoint on the GraphQL API.
• A Django-based administration interface to review the data.
• A GraphQL explorer interface to try the API and build queries.
• CLI tools to trigger pipelines.

Technical overview

Backend

• The Django 3 framework provides an ORM (Object-Relational Mapping) layer, user authentication, as well as a robust CLI building framework.
• Graphene-Python is employed to build the GraphQL API.
• PostgreSQL is used for the database.
• lxml is a toolkit for high-performance parsing of web pages.
• Selenium is a versatile scraping tool that automates web browser interaction.
• Camelot is a powerful Python library that allows us to extract tables from the schedule PDFs.

Also, requests is used to send HTTP requests, and some string libraries like editdistance to build the fuzzy matching algorithm.

Frontend

• The built-in content administration interface of Django is used to manage the data, with some tweaks and additions.
